Understanding Open Circuit (OC) and Short Circuit (SC) Tests
1. What are these tests all about?
Ever wondered how engineers figure out what's going on inside a transformer without actually dismantling it? Well, that's where Open Circuit (OC) and Short Circuit (SC) tests come in! These are ingenious methods to determine the equivalent circuit parameters of a transformer, which helps in predicting its performance, efficiency, and voltage regulation. Think of them as non-invasive diagnostic tools for your electrical buddies.

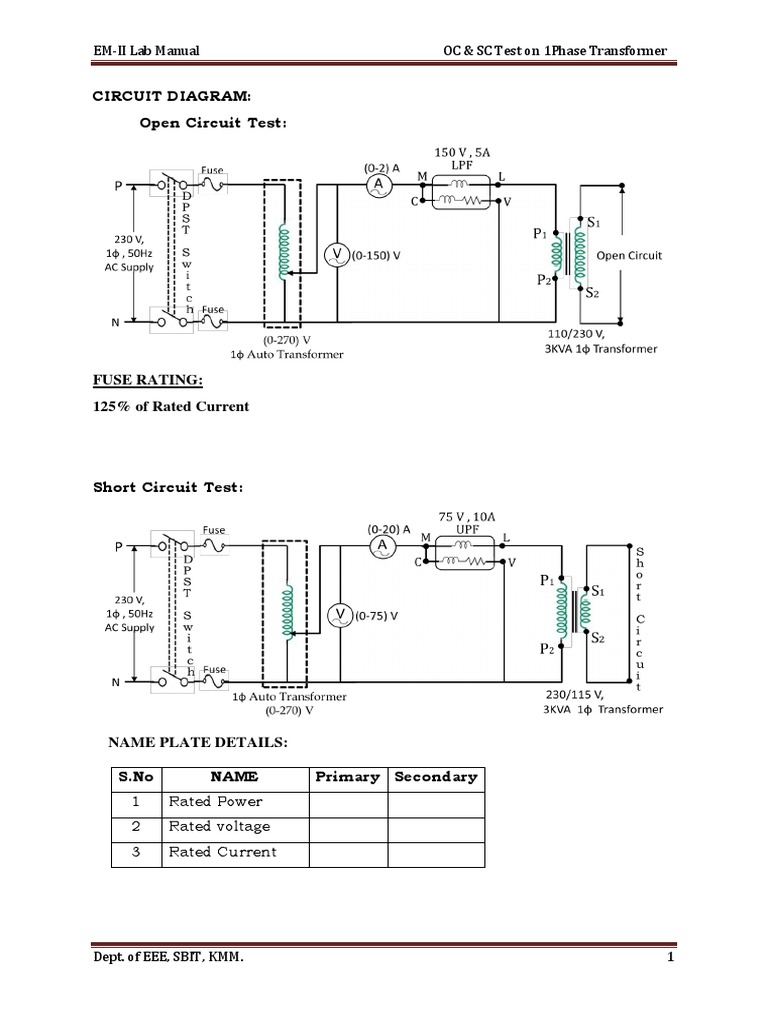

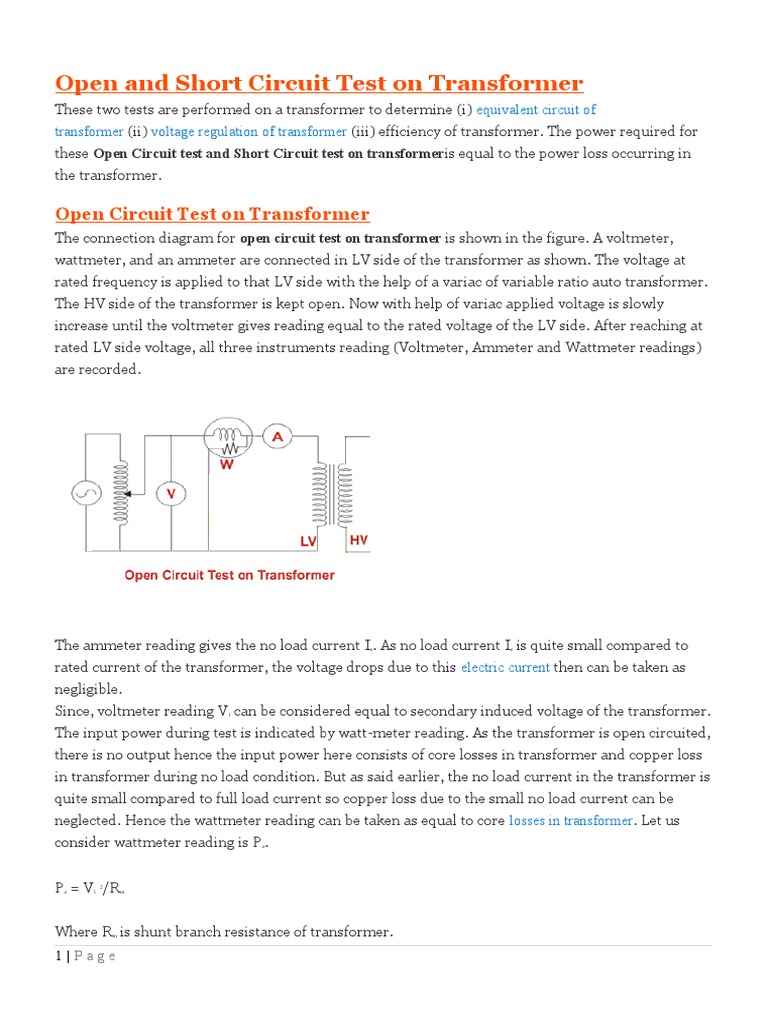

The OC test, sometimes playfully referred to as the no-load test, is like checking a car engine when it's idling. You apply rated voltage to one winding (usually the low-voltage side) while keeping the other winding open (hence the name!). By measuring the input voltage, current, and power, we can determine the core loss (hysteresis and eddy current losses) and the magnetizing impedance of the transformer. It's all about understanding how much energy the transformer consumes just by being energized, without any external load.
On the flip side, the SC test is akin to a stress test. It involves short-circuiting one winding (usually the low-voltage side) and applying a reduced voltage to the other winding (typically the high-voltage side) until rated current flows through the windings. The input voltage, current, and power are measured. From these measurements, we can find the equivalent resistance and leakage reactance of the transformer, representing the copper losses in the windings. This tells us how efficiently the transformer can handle current flow.
Basically, OC test tells you about the core, SC test tells you about the windings. They are both critical to ensuring the transformer operates safely and efficiently. Its like understanding the heart and muscles of a body — both are important, right?
