1. Defining the Terms

When we talk about "stability" in the world of control systems, we're essentially asking: "Does this system freak out easily, or does it handle disturbances gracefully?" A stable system is like a well-balanced bicycle — it might wobble a little, but it always returns to an upright position. An unstable system, on the other hand, is like a bicycle with square wheels — it's a bumpy ride that's likely to end in a crash. So, stability is all about how a system responds to changes and whether it settles down or spirals out of control. It's kinda like trying to juggle chainsaws. You want to be stable; otherwise, things get messy real quick.

Now, let's talk about what makes a system "open-loop" or "closed-loop." Imagine you're baking a cake. In an open-loop system, you set the oven temperature and timer, and that's it! You're hoping for the best. There's no feedback, no way to adjust if the oven is running hotter or colder than expected. A closed-loop system, however, is like having a smart oven that constantly monitors the temperature and adjusts the heating element to keep it right where you want it. It's got feedback, which is key to maintaining control and, more importantly, stability.

Think of it like driving a car. An open-loop scenario is like setting the cruise control and hoping for the best, even if you hit a hill. A closed-loop system? That's you, the driver, constantly adjusting the gas pedal based on your speed and the road conditions. Youre using feedback (your speed, the incline of the hill) to keep things on track. This constant adjustment is what helps keep things stable, especially when unexpected bumps (or hills) come along.

So, the main difference is the presence of feedback. Open-loop systems operate blindly, while closed-loop systems use feedback to constantly correct themselves. It's like the difference between sending a text and hoping it gets there versus getting a read receipt. One's a shot in the dark, the other confirms things are as they should be, which increases reliability and, you guessed it, stability. And that makes all the difference!

Difference Between Open Loop & Closed System The Engineering

Open-Loop Systems

2. The Pros and Cons of Open-Loop Control

Open-loop systems are the simplest type of control system. They are straightforward to design and implement, often costing less than their closed-loop counterparts. They're like that old toaster youve had for years: one knob, one job. But here's the catch: they are highly susceptible to disturbances. If something unexpected happens a change in load, a power fluctuation, or even just a particularly humid day the system can easily drift off course. There's no built-in mechanism to correct for these errors, so what you set is what you (might) get... but probably not.

Imagine a conveyor belt moving products from one point to another. In an open-loop setup, you set the motor speed and assume everything will run smoothly. But what if the belt gets a little sticky, or the products get heavier? The speed drops, and products start piling up. Because there's no feedback to detect this slowdown, the system keeps running at the same speed, blissfully unaware of the chaos it's creating. Think of it like trying to perfectly pour a glass of water without looking at the glass — you might get close, but you're probably going to spill some.

Consider a basic light timer. You set it to turn on at 6 PM and off at 6 AM. That's it. If a sudden power outage throws everything off, the timer won't know the difference. It'll merrily turn the lights on and off at the wrong times. No feedback, no correction, just blind faith in the initial settings. This inherent lack of error correction is the biggest drawback of open-loop systems, making them suitable only for applications where precision isn't critical and disturbances are minimal.

While their simplicity and low cost are attractive, the sensitivity of open-loop systems severely limits their use in complex applications. They are like a cheap watch it tells time sometimes. For anything requiring consistent accuracy and the ability to adapt to changing conditions, you'll need to step up to a closed-loop system. They are more like the expensive watch you bought, that you can wear it anywhere and still tells you the time.

Comparison Of The Frequency Response Openloop And Closedloop

Closed-Loop Systems

3. How Feedback Enhances Stability

Closed-loop systems, unlike their open-loop cousins, utilize feedback to continuously monitor and correct their output. This feedback loop is the key to their superior stability. By constantly comparing the actual output to the desired output, the system can automatically adjust its control signal to minimize any errors. It's like having a GPS in your car — it constantly checks your location and provides course corrections to keep you on the right path. Think about cruise control in your car. It adjusts the throttle based on feedback from the speedometer to maintain your set speed, even when going up or down hills. That's a closed-loop system in action!

Imagine a temperature control system in a modern HVAC (heating, ventilation, and air conditioning) unit. The system constantly monitors the room temperature and compares it to the thermostat setting. If the room is too cold, the system increases the heat output; if it's too hot, it reduces the heat output. This continuous feedback loop ensures that the room temperature stays close to the desired level, regardless of external disturbances like opening a window or a sudden change in weather. The closed-loop system adapts and maintains stability.

Another great example is an automated robot arm in a manufacturing plant. It uses sensors to monitor its position and orientation, and then adjusts its movements accordingly. If something obstructs its path, the feedback system detects the change and the robot arm can adapt its trajectory to avoid the obstacle. This level of precision and adaptability is impossible to achieve with an open-loop system. It's like having a personal assistant that anticipates your needs and proactively addresses potential problems.

This continuous adjustment isn't without its challenges. Designing a stable closed-loop system requires careful consideration of the feedback loop. If the feedback is too aggressive, it can lead to oscillations and instability. It's like oversteering when driving a car — you might correct the initial error, but you end up overcorrecting in the opposite direction. Properly tuned, however, a closed-loop system provides unparalleled stability and accuracy, making it the preferred choice for demanding applications where performance and reliability are paramount. It's like having a well-trained athlete, constantly adapting and optimizing to achieve peak performance.

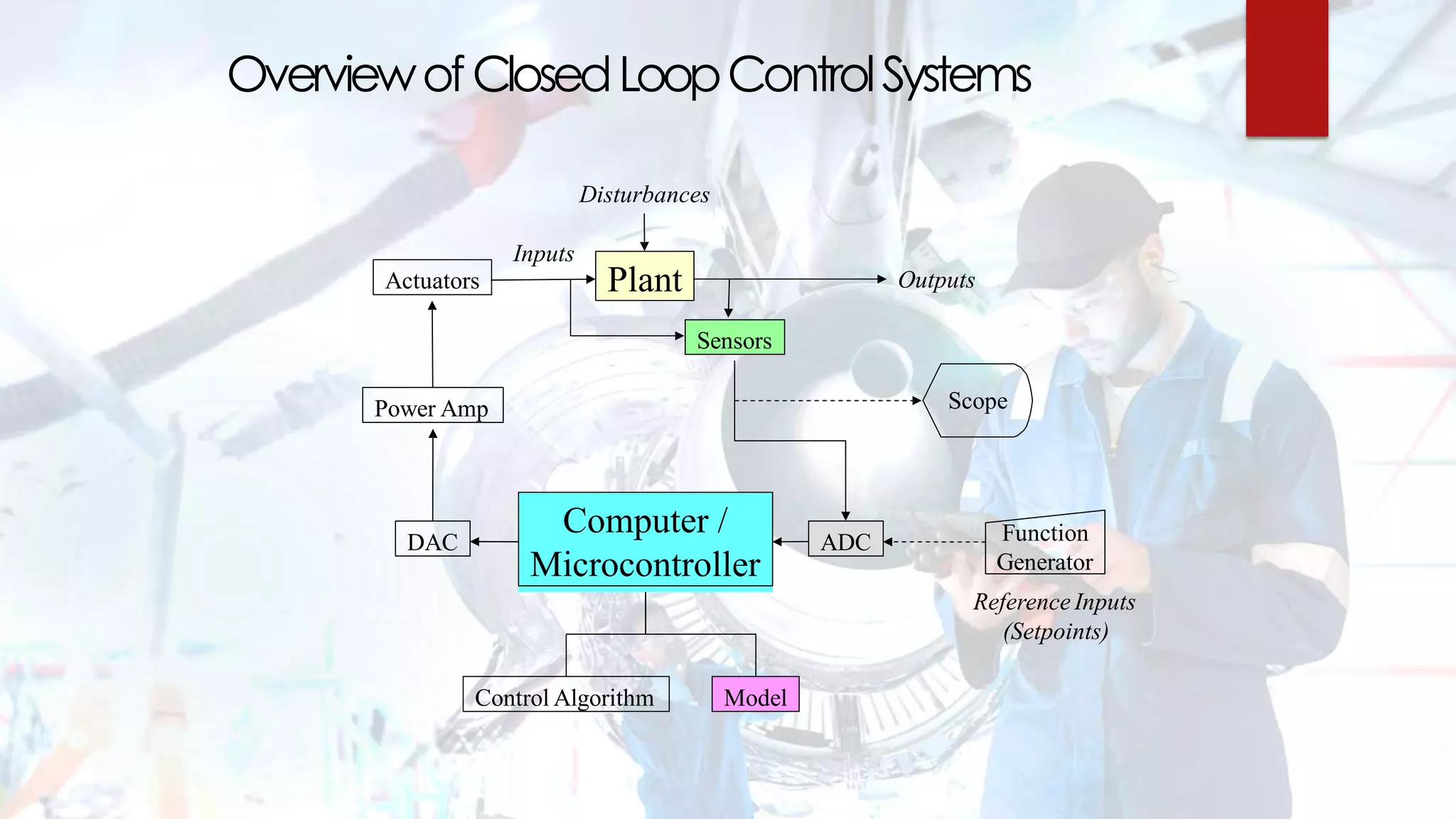

Open Loop & Closed System.pdf

Comparing Stability

4. The Verdict on Stability

So, which is more stable: open-loop or closed-loop? The answer, almost invariably, is closed-loop. The presence of feedback makes all the difference. Open-loop systems are inherently vulnerable to disturbances, while closed-loop systems actively counteract these disturbances to maintain a stable output. Consider this: a perfectly calibrated open-loop system might perform flawlessly in ideal conditions. But the moment something deviates from the norm, its performance will degrade. A closed-loop system, on the other hand, will adapt and compensate, ensuring consistent performance even in the face of changing circumstances. It's like the difference between a fair-weather friend and a true companion — one is only there when things are easy, the other sticks with you through thick and thin.

The stability of a closed-loop system isn't guaranteed, however. Poorly designed or improperly tuned feedback loops can actually make the system less stable. Imagine a microphone placed too close to a speaker — the feedback creates a screeching sound that gets louder and louder until someone intervenes. This is an example of positive feedback leading to instability. The key is to design the feedback loop carefully, ensuring that it provides corrective action without causing oscillations or runaway effects. Think about a chef carefully balancing the flavors in a dish — too much of one ingredient can ruin the whole thing.

The choice between open-loop and closed-loop control depends heavily on the application. If the system is simple, the environment is stable, and precision isn't critical, then an open-loop system might be sufficient. But for anything more complex, where accuracy and reliability are paramount, a closed-loop system is the way to go. It's like choosing between a simple hand tool and a sophisticated power tool — one is fine for basic tasks, the other is essential for tackling more demanding projects.

Ultimately, stability is paramount. No one wants a system that's going to go haywire at the slightest provocation. While open-loop systems have their place, closed-loop systems offer a level of stability and resilience that is simply unmatched, making them the workhorse of modern control engineering. And they give you peace of mind, too. You know the closed-loop system is on the job for you all of the time.

Open Loop And Closed Systems Basic Concepts Process Control

Practical Examples and Applications

5. Real-World Applications of Stable Systems

Let's delve into some concrete examples to illustrate the stability benefits of closed-loop systems. Consider the autopilot system in an airplane. It constantly monitors the plane's altitude, heading, and speed, and adjusts the control surfaces (ailerons, elevators, rudder) to maintain the desired flight path. This is a classic closed-loop system, relying on feedback from sensors and GPS to keep the plane on course. Without this system, even slight gusts of wind or changes in air pressure could send the plane veering off course, requiring constant manual adjustments from the pilot. Imagine trying to fly a plane without autopilot — it's like trying to ride a unicycle while juggling flaming torches.

Another everyday example is the temperature control in your home refrigerator. It uses a thermostat to monitor the internal temperature and cycles the compressor on and off to maintain a consistent cold environment. This prevents food from spoiling and ensures that your ice cream stays frozen. This is a closed-loop system working quietly in the background to keep everything cool (literally and figuratively). Without it, your fridge would either freeze everything solid or let it all thaw out. No one wants that!

Modern industrial processes rely heavily on closed-loop control to ensure quality and efficiency. For example, in a chemical plant, precise control of temperature, pressure, and flow rates is essential for producing high-quality products. Closed-loop control systems use sensors and actuators to maintain these parameters within tight tolerances, minimizing waste and maximizing yield. These systems are the backbone of modern manufacturing, enabling the production of everything from plastics to pharmaceuticals. Without them, we'd be back in the dark ages of industrial production.

Even in seemingly simple applications, closed-loop control can make a big difference. Consider a self-balancing robot. It uses sensors to detect its orientation and adjusts its motors to stay upright. This requires a sophisticated feedback loop that constantly monitors and corrects its position. Without this feedback, the robot would simply topple over. It's like a tightrope walker constantly adjusting their balance to stay on the wire. These examples highlight the versatility and importance of closed-loop control in a wide range of applications, from everyday appliances to cutting-edge technology.

Open Loop & Closed System.pdf

FAQ

6. Frequently Asked Questions

Okay, let's tackle some common questions about open-loop and closed-loop stability. It can be a little confusing at first, but hopefully, these answers will clear things up.

Q: Can an open-loop system ever be considered truly stable?

A: Yes, theoretically. If the system is perfectly calibrated, operates in a completely predictable environment, and is not subjected to any disturbances, an open-loop system can maintain a stable output. However, this is rarely the case in the real world. Any deviation from these ideal conditions will likely cause the system to drift off course. It's like saying you can perfectly predict the weather — possible in theory, but highly unlikely in practice.

Q: What are the key factors that affect the stability of a closed-loop system?

A: Several factors influence closed-loop stability, including the gain of the feedback loop, the time delay in the feedback path, and the presence of nonlinearities in the system. A high gain can lead to oscillations, while a significant time delay can cause the system to overcorrect and become unstable. Nonlinearities can also introduce unexpected behavior that can be difficult to predict and control. It's like trying to tune a musical instrument — you need to adjust multiple parameters to achieve the perfect harmony.

Q: Is it always better to use a closed-loop system?

A: Not necessarily. Closed-loop systems are more complex and expensive to design and implement than open-loop systems. If the application is simple, the environment is stable, and precision isn't critical, then an open-loop system might be a more cost-effective solution. However, for applications where accuracy, reliability, and robustness are paramount, a closed-loop system is almost always the better choice. It's like choosing between a bicycle and a car — one is simple and efficient for short trips, the other is more comfortable and capable for longer journeys.
